Husky Copper Tube Project Kit

Husky’s Tube Bending Tool provides precise tube bending without kinking or flattening. The tool bends 1/4 in., 5/16 in. and 3/8 in. diameter soft metal tubing up to 90 degrees. Features easy-to-use angle markings for quick measuring. Husky’s 5/8 in. Junior Tube Cutter can trim 1/8 in. to 5/8 in. outer diameter (1/4 in. to 1/2 in. NPS) tubing quickly and with little effort. The knob has a spoked design for added leverage and turning ease. Husky’s Deburring Tool removes burrs from metal or plastic pipe edges resulting from cutting, drilling, grinding or milling tasks. The blades are easy to replace using the push button blade release. Includes two types of blades: the black deburrs aluminum, copper and PVC pipes while the silver deburrs brass and cast-iron pipes. The Husky Heavy Duty Pro Flaring Tool provides smooth, uniform, 45-degree flares with minimal effort. It features a handle clutch that releases when the flare is complete. Compatible with 3/16 in., 1/4 in., 5/16 in., 3/8 in., 7/16 in., 1/2 in., 5/8 in., and 3/4 in. pipe sizes. Husky’s Swaging Tool joins like-size copper tubing and eliminates the need for couplings. It has 6 swaging size capabilities from 3/16 in. to 5/8 in. diameter. It features a hardened steel construction for long-lasting durability. All tools are covered by the Husky lifetime warranty.

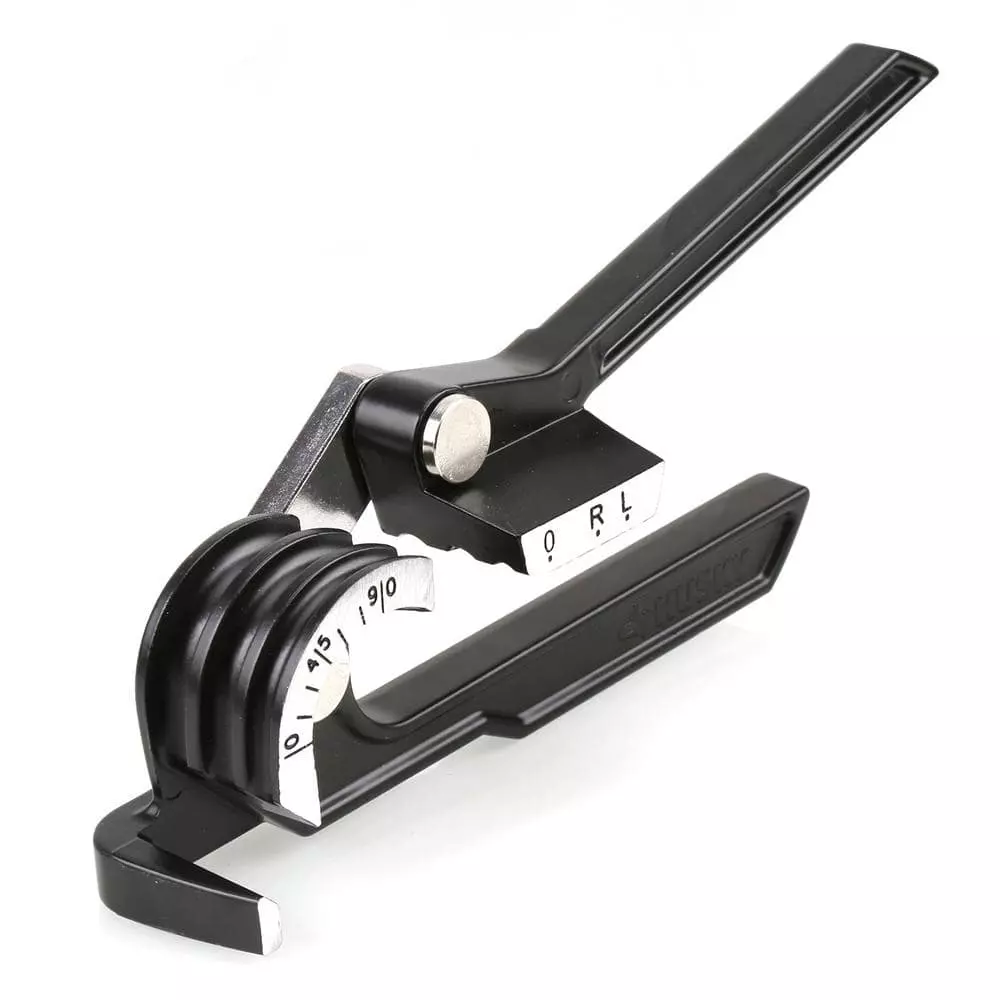

• Tube Bending Tool (80-535-111):
• Used to bend 1/4 in., 5/16 in. and 3/8 in. O.D. soft metal tubing
• Features shoe-handle design for optimal tube bending
• 5/8 in. Junior Tube Cutter (80-511-111):
• 1/2 in. maximum nominal pipe size capacity, 1/4 in. minimum nominal pipe size capacity
• 5/8 in. maximum O.D. pipe size, 1/8 in. minimum O.D. pipe size capacity

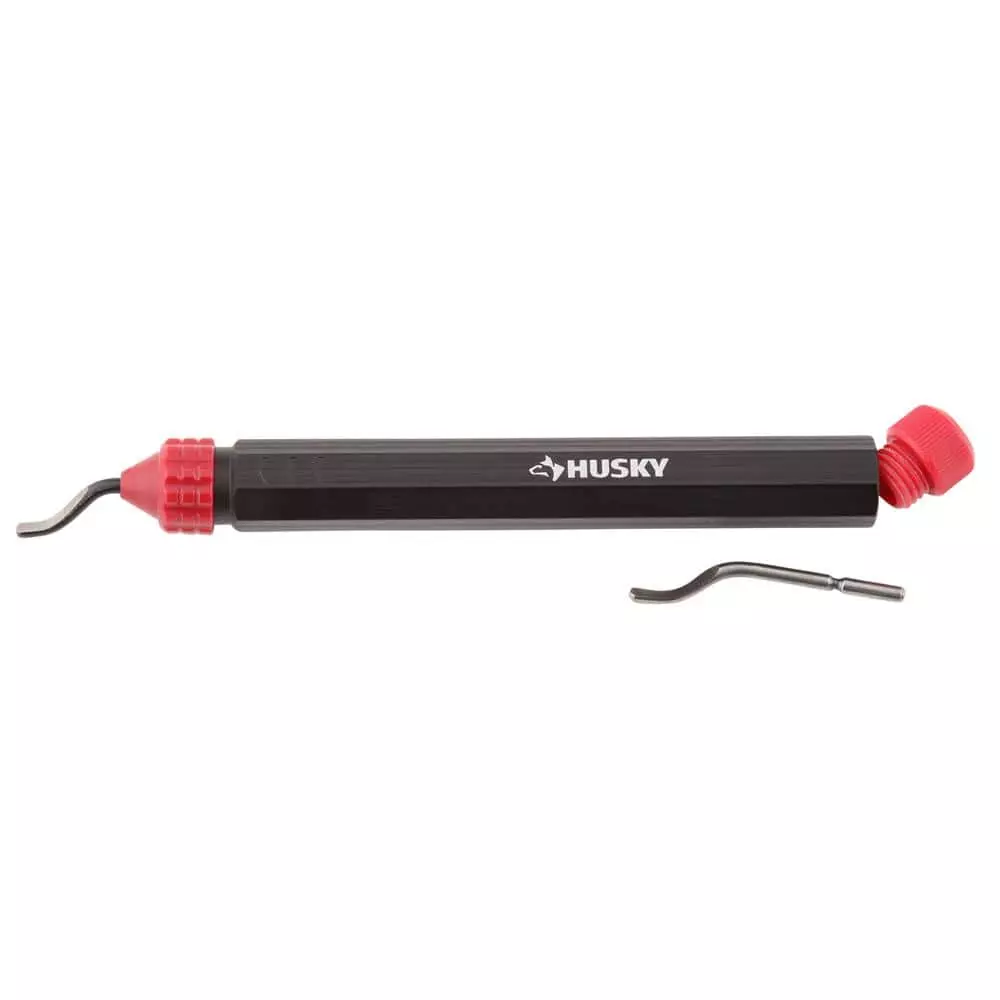

• Deburring Tool (80-531-111):
• Tool includes 2 interchangeable blades – the E10 (black) is designed for deburring copper, PVC and aluminum tubing; the second E20 blade (silver) comes stored in the handle and is designed for deburring brass and cast-iron pipe

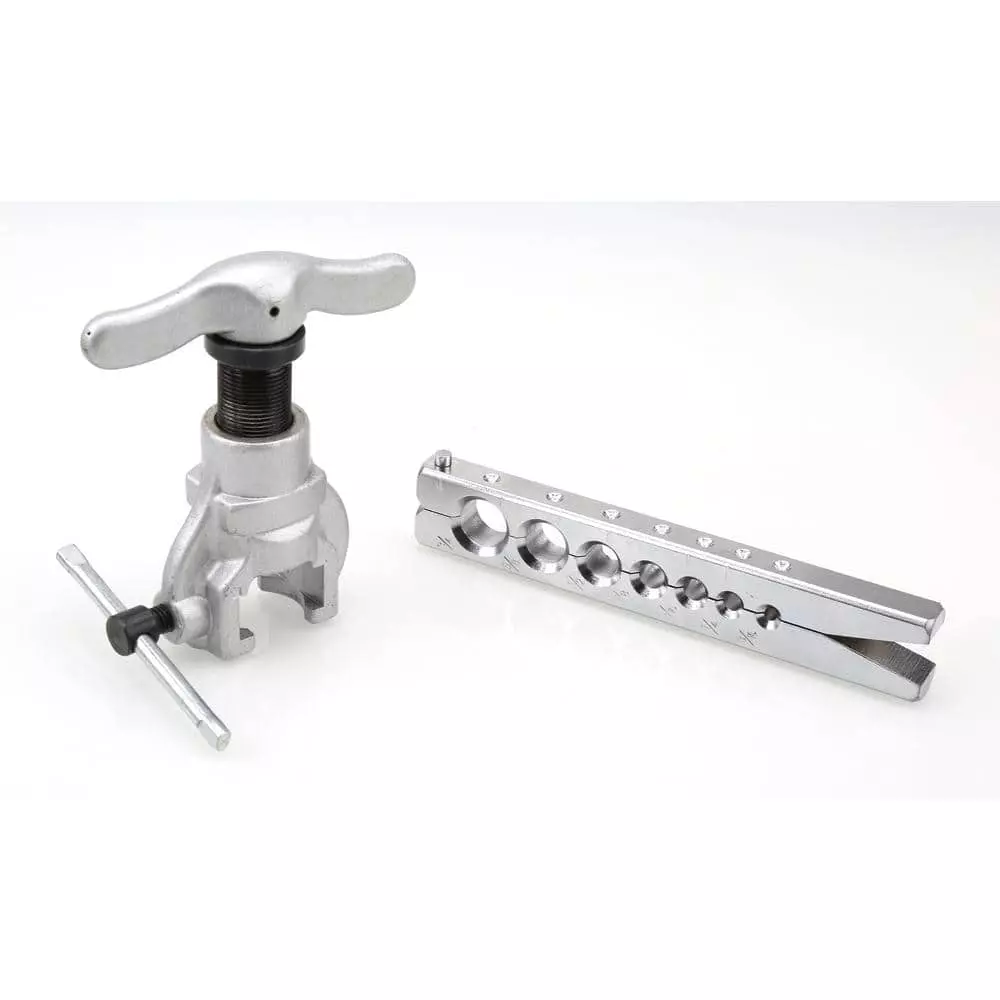

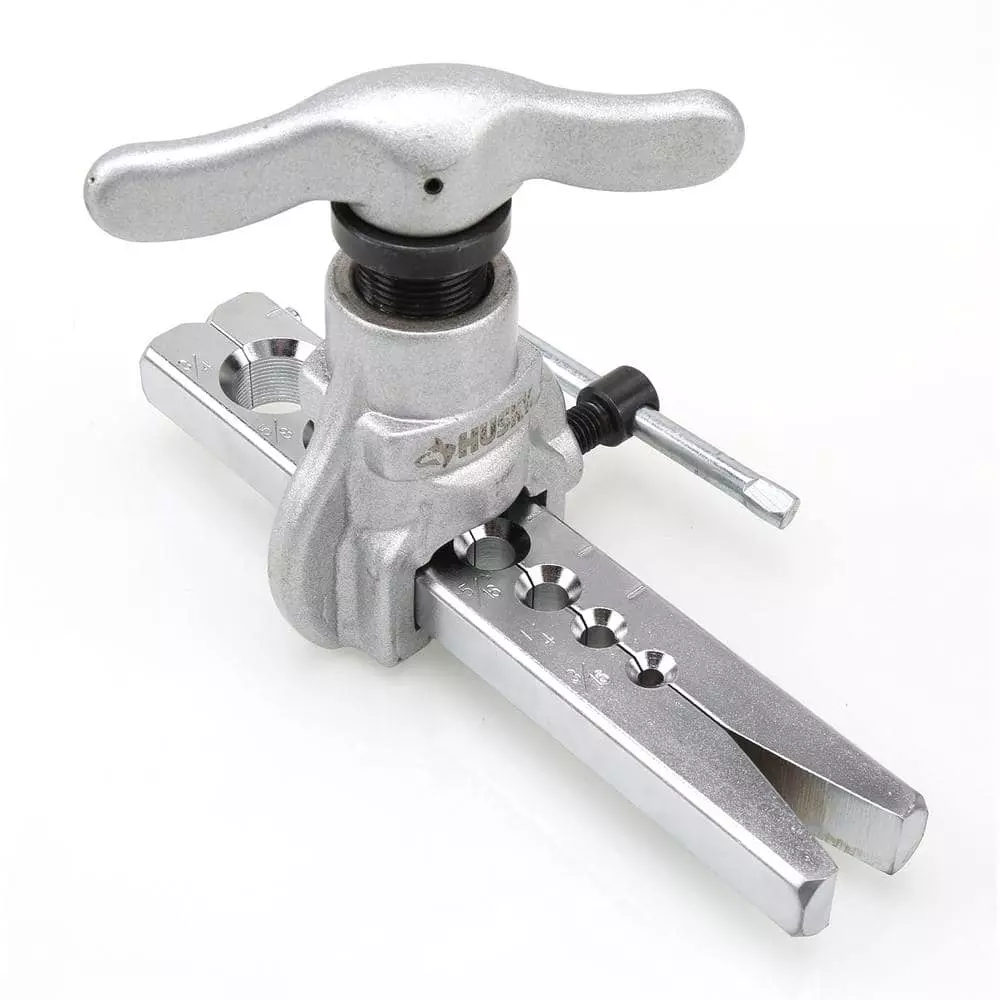

• Heavy Duty Pro Flaring Tool (86-868-0111):
• Produces flares in soft copper, brass, aluminum and mild steel tubing
• 45-degree flares in 3/16-inch, 1/4-inch, 5/16-inch, 3/8-inch, 7/16-inch, 1/2-inch, and 5/8-inch pipe sizes

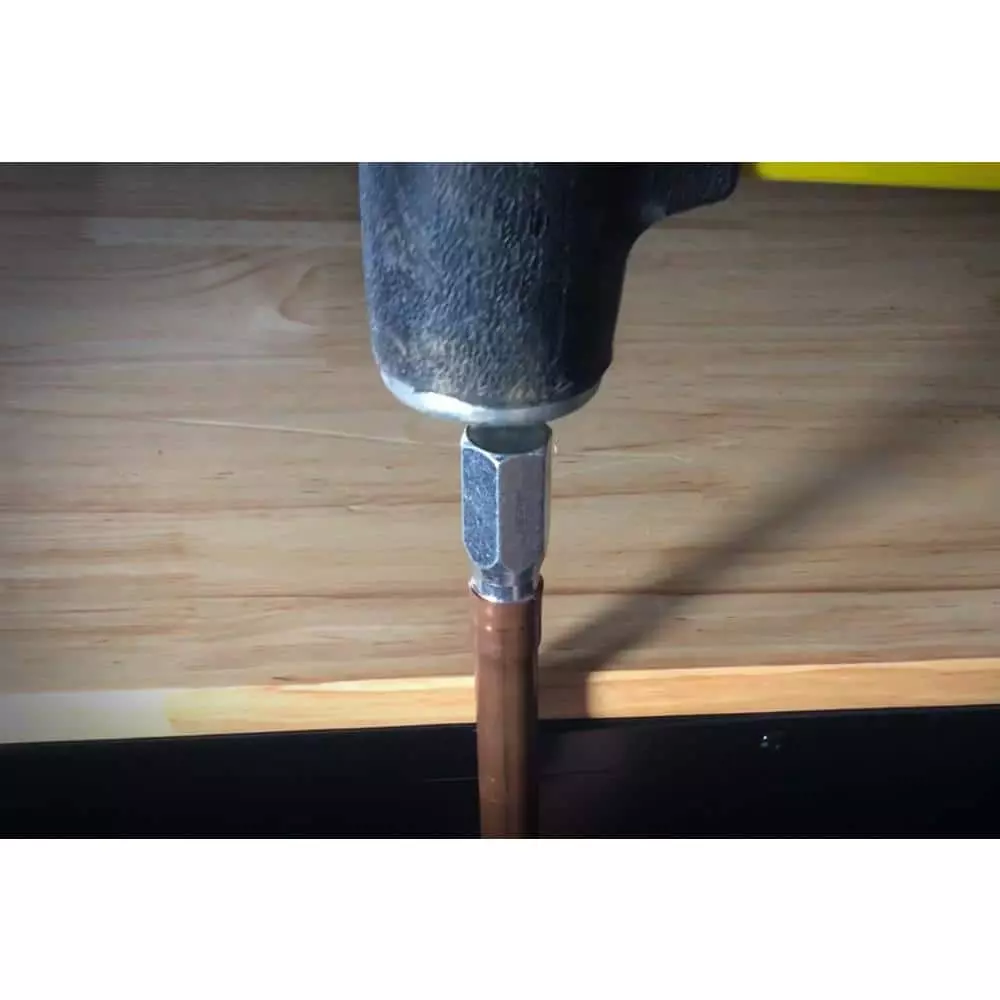

• Swaging Tool (80-538-111):
• Use to join like-size copper tubing and eliminate the need to use couplings
• Swages 3/16 in., 1/4 in., 5/16 in., 3/8 in., 1/2 in. and 5/8 in. O.D. tubing
• Requires hammer for use
• Call 1-888-HD-HUSKY for customer service and support.
